Extreme Tools RX Series 55” 12 Drawer Roller Cabinet with 150 lbs. Slides

Extreme Tools® RX Series 55″ 12 Drawer Roller Cabinet With 150 Lbs. Slides

The Extreme Tools® RX Series introduces the 55" 12-drawer Roller Cabinet, an enhanced iteration of the original model. We've significantly reinforced the drawer capacities: each drawer equipped with single sets of slides now accommodates up to 150 lbs, while those with double sets of slides boast an impressive 300 lbs load capacity! Thanks to the heavy-duty, full-extension ball-bearing drawer slides, you can load each drawer to the brim while enjoying smooth, consistent operation when opening and closing. Worries about warping or twisting drawers are a thing of the past, even with the addition of three extra-wide drawers, as we've incorporated internal support for added strength and stability in this upgraded RX552512RC-X 55" Roller Cabinet.

Quick Release Technology

Our patented Quick Release self-latching drawer pulls are truly unique in their design. Their innovative engineering allows the latches to fasten securely across the entire drawer front, not just at the ends. This results in a more robust and dependable handle that never detaches from the drawer. The drawer closure latches are nothing short of exceptional, enabling you to effortlessly open the drawer with one hand from any point on the pull – a crucial feature, especially when your hands are occupied. These drawers not only excel in functionality but also in aesthetics.

Our full-width solid extruded drawer pulls are crafted from the highest quality aluminum and undergo an anodization process that ensures they maintain their pristine appearance over time. We've also added matching trim and a side handle to complete the look.

Backing our Extreme Tools® patented design is a foundation of heavy-duty steel construction and our exclusive Mag Wheel Casters. Each of the six casters is individually rated to support an impressive 900 lbs, ensuring they can easily handle the weight even when your toolbox is fully loaded. To safeguard your roller cabinet, we provide professional-grade PVC drawer liners and a PVC laminated MDF work surface for the top. The roller cabinet boasts a high-gloss powder coat finish, specially formulated by AkzoNobel to resist scratches and chemical stains, preserving the pristine appearance of your toolbox for years to come.

Drawer Inside Dimensions:

1 Drawer –   50.5″W x 23.3″D x 5.1″H
2 Drawers – 50.5″W x 23.3″D x 2.2″H
3 Drawer –   14.8″W x 23.3″D x 2.2″H
1 Drawer –   14.8″W x 23.3″D x 11.0″H
3 Drawers – 33.1″W x 23.3″D x 2.2″H
2 Drawer –   33.1″W x 23.3″D x 5.1″H

Features And Benefits

• Overall Dimensions: 55″W x 25″D x 47″H
• 3 Extra wide drawers with an added support bar to fit large tools
• Full-width, polished extruded aluminum drawer pulls
• Patented Quick Release self-latching drawer pulls keep drawers closed even when moving
• 25″ Cabinet depth
• Full-extension ball bearing slides on drawers allow drawers to open and close smoothly
• Ball bearing slides load rated 150 lbs per set of slides drawer
• Deep drawers with 2 sets of slides hold up to 300 lbs.
• Heavy-duty steel caster channel/bottom frame construction
• AkzoNobel high gloss powder coat finish
• Tubular, coded security lock and keys
• Tubular stainless steel side handle on roller cabinet included
• Six 6″x 2″ Caster (4 locking swivels and 2 rigid)
• PVC drawer liners included
• Total Capacity: 16.61 cubic feet
• Net Weight: 424 lbs
• Shipping Weight: 455 lbs

Specifications

Dimensions and Specifications

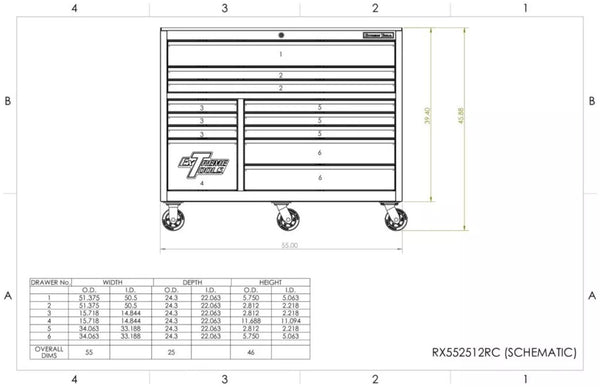

Schematics

About RX Professional Series

RX Professional Series

The Extreme Tools® RX Professional Series is designed to meet the demands of professional technicians, offering top-notch quality and essential features. Our commitment to providing the best toolboxes at competitive prices continues with the RX Series, where our engineers have crafted a line of products that prioritize strength, durability, and expansive storage capacity. Available in widths ranging from 19” to 72” and depths from 25” to 30”, the RX Series offers an array of sizes and color options to suit your preferences and requirements.

What makes the RX Professional Series Extreme?

Extreme Tools® is dedicated to manufacturing toolboxes with the utmost quality, starting with the robust frames that form their foundation. In the RX Series, we've used heavy-duty, powder-coated 12/14-gauge steel construction for these frames, ensuring they provide a solid base for our cabinets. Paired with heavy-duty casters capable of supporting up to 900 lbs. each, our roller cabinets are built to handle substantial loads with ease.

Our engineering team didn't overlook the importance of user-friendly drawer pulls, resulting in the patented RX Series Quick Release self-latching drawer pulls. Crafted from top-tier polished, extruded anodized aluminum and available in various colors, these full-width drawer pulls are not only stylish but also incredibly practical. The unique design securely fastens the drawer pull across the entire width of the drawer, enhancing its strength and stability.

However, our commitment to excellence goes beyond drawer pulls. The RX Series embodies both form and function:

• Aesthetics matter, so we've applied a specially formulated AkzoNobel high-gloss powder finish in a range of appealing color combinations.
• Larger cabinets (72” and 55”) feature extra-deep and extra-wide drawers to accommodate long, large, or bulky tools.
• Choose from different drawer load capacities to suit your specific needs, ranging from 100-200 lbs., 150-300 lbs., to 250-500 lbs. per drawer.
• Every drawer boasts full-extension ball-bearing slides with robust structural support to prevent overshooting the slides' backs.
• We've added internal support beneath the longer drawers to ensure strength, rigidity, and resistance to warping or twisting.
• Extreme Tools® boxes feature a higher number of spot welds, plug welds, and robotic laser welds, delivering consistent reliability and long-lasting durability that meets the highest quality standards.

Extreme Tools® Engineering

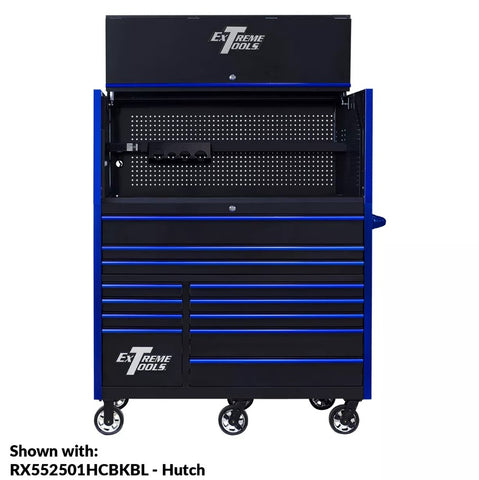

Extreme Tools® takes pride in engineering excellence beyond our roller cabinets, as exemplified by our patented Extreme Power Workstation® hutches, among the most sought-after add-on components we offer. RX Series hutches boast a matching, adjustable powder-coated steel shelf, featuring laser-cut openings for efficient organization and storage of various small hand tools. We've even integrated a 3-outlet power strip with 2 USB ports, eliminating the need for messy extension cords and enabling you to leave your tools charging securely when the workday is done. The hutch's sides are crafted from robust steel pegboard, sharing the same high-quality AkzoNobel powder coat finish as our roller cabinets, providing ample space for hanging tools and accommodating accessories like the power tool rack, socket holder, or media/tech holder with a charging pad for ultimate organization and accessibility.

The RX Professional Series encompasses more than just roller cabinets and hutches, with the 72” and 55” models offering top chests and side lockers, and some models even featuring a side box. The 41” RX model is complemented by a top chest as well.

To ensure this series stands out as one of the best money can buy, we've also paid attention to those crucial extras that collectively make a significant impact. All finishes are specially formulated AkzoNobel powder coats engineered to resist chemicals, scratches, and stains. We exclusively use top-grade, cold-rolled extruded polished color-anodized aluminum drawers, eliminating concerns about oxidation or yellowing. Our commitment extends to including PVC drawer liners and a PVC-laminated MDF work surface for safeguarding the top of your toolbox. For those seeking premium options, we offer 72” and 55” stainless-steel work surfaces constructed from professional-grade 304-grade stainless steel. Finally, securing your tools is effortless, thanks to the standard secure tubular coded locks that come with 2 keys. We understand the importance of every detail, which is why we provide a limited 5-year warranty to keep you covered.
